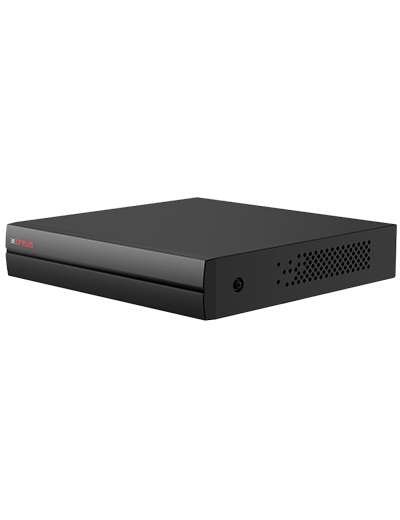

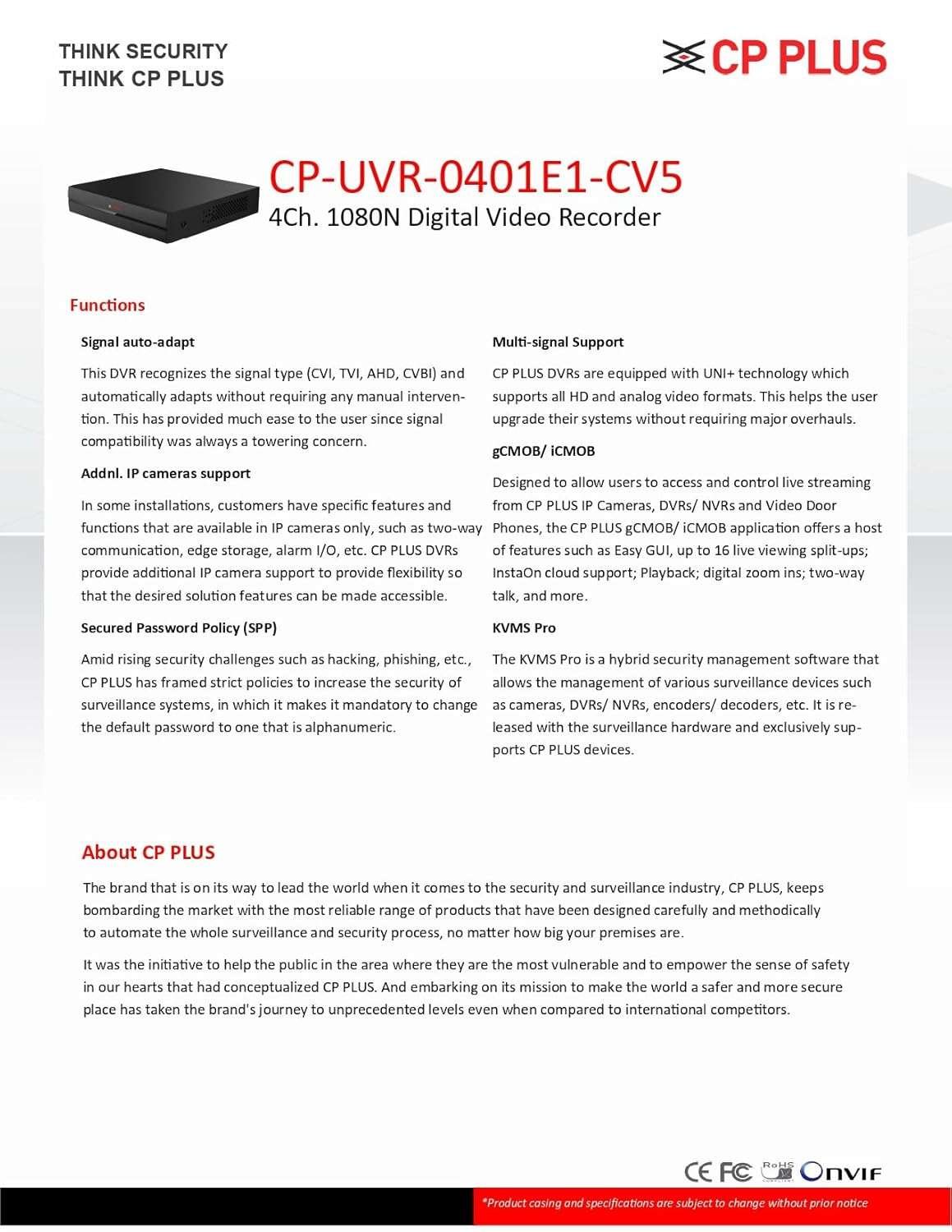

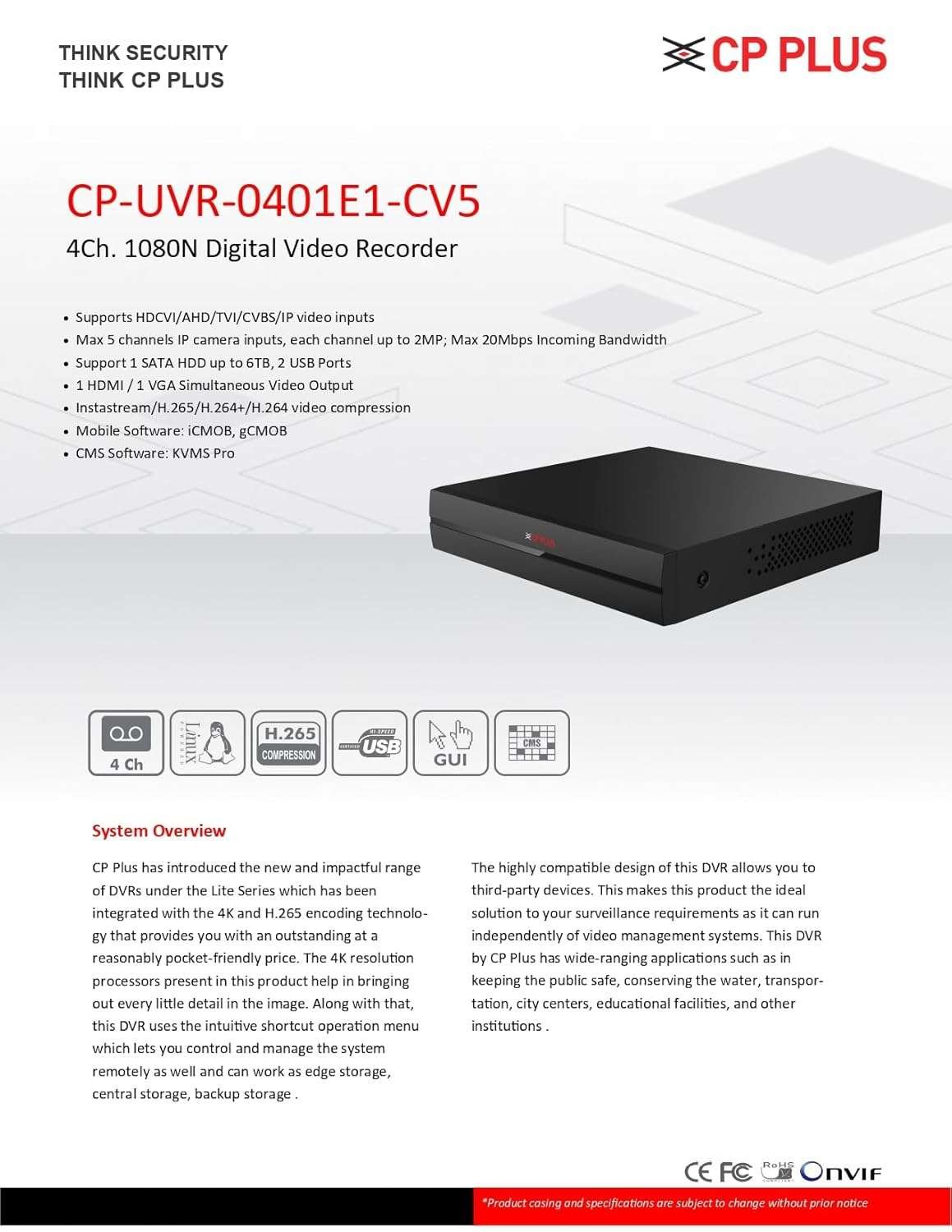

CP PLUS 4 Channel 1080N 2.4MP DVR CP-UVR-0401E1-CV5 2year

Description

Processor Embedded processor
Operating System Embedded LINUX
IP Camera Input 4+1, each channel up to 2MP
Two-way Talk Reuse audio in/out, RCA
User Interface GUI

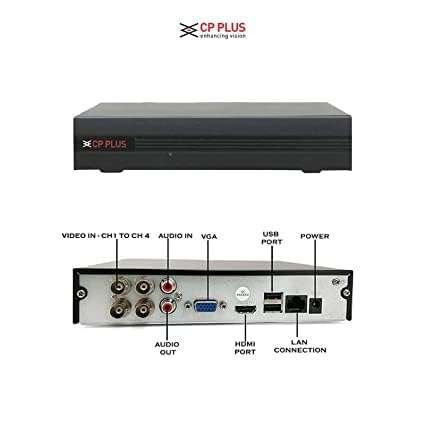

Video Input 4 channel, BNC
Video Output 1 HDMI, 1 VGA
Video Compression Instastream/H.265+/H.264+/H.264
Video Resolution 1920×1080, 1280×1024, 1280×720
Video Recording Main Stream: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/ QCIF(1~25/30fps); Sub stream: CIF/QCIF (1~15fps)
Resolution 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Video Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Bit Rate 32 kbps–4096 kbps per channel
Audio Compression G.711A, G.711U, PCM
Audio Input 1 channel, RC
Audio Output 1 channel, RC
Audio Sample Rate 8KHz, 16 bit Per Channel
Audio Bit Rate 64Kbps Per Channel
Camera Blank Support
Smart Phone iPhone, iPad, Android Phone
Hard Disk 1 SATA port, up to 6TB capacity
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second)
Playback 1/4Ch.
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Backup Mode USB Device/Network
Interface Ports 2 USB Ports (USB 2.0)
User Access 128 users
Record Interval 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet 1 RJ-45 port (100Mbps)
Protocols HTTP; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search, ONVIF 16.12, CGI Conformant
Power Supply DC12V/1.5A
Working Temperature -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% (RH)
Power Consumption <10W (without HDD)
Storage Temperature -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% (RH)
Dimension 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Net Weight 0.56kg (without HDD)
